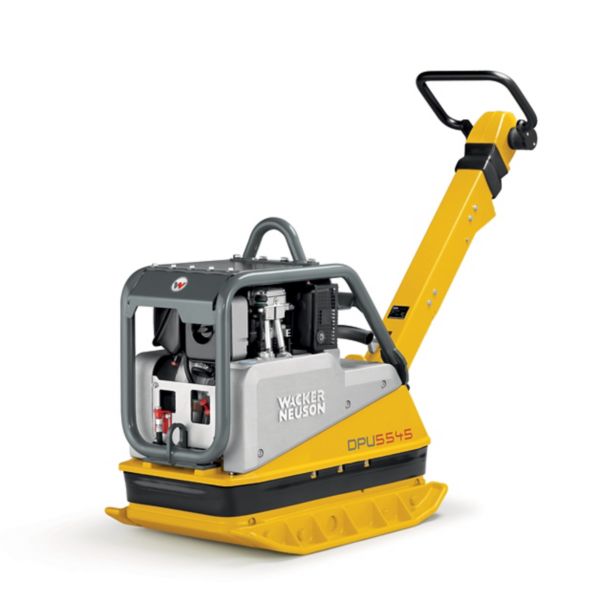

Wacker Neuson DPU5545H 600mm Diesel Reversible Compaction Plate

High end compaction from extra high centrifugal force.

Easy to control with hydraulic gear shift mechanism.

Petrol & diesel models to suit all kinds of applications combining low weight and high compaction force.

Designed for easy maintenance with removable covers, belt tensioners and self priming hydraulic systems.

Built-in lifting points enables machines to be easily moved on site.

Engine protection frames protect the machines from tough site conditions.

Foldable handle which provide easy moving, minimum size for transport and storage.

Compact design combined with excellent ergonomic and low HAV which minimises operator fatigue.

Includes 2 x 75mm baseplate extension plates.

- 2006/42/EC - New machinery directive

- 2000/14/EC - Noise - equipment for use outdoors

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

Handle: Steel

Front Cover: HDPE

Main Frame: Steel

Baseplate: Steel

Hand Grips: Polyurethane Foam

Flexible Mounts: Steel & Rubber

Various Parts: Steel & Aluminium

Engine: Aluminium

Integrated wheel set, extremely robust, even hot asphalt and sharp/curbstone drops will not damage the wheels.

Engine protection by way of an extra long fuel filler neck: reduces the risk of dirt particle infiltration during the refueling process.

Protection against transport damages by way of the automatic self-latching, zero backlash guide pole.

Easy changing of working locations: collapsible and rotary central lifting point for most of the transport devices commonly used on job sites.

Extremely durable, even under extreme conditions: base plate manufactured out of GJS-700 (spherulitic graphite iron). The best combination for a high resistance to breaking and low wear.

Fatigue-proof and precise workmanship thanks to the control handle damping and the integrated lateral control.

Integrated wheel set, extremely robust, even hot asphalt and sharp/curbstone drops will not damage the wheels.

Engine protection by way of an extra long fuel filler neck: reduces the risk of dirt particle infiltration during the refueling process.

Protection against transport damages by way of the automatic self-latching, zero backlash guide pole.

Easy changing of working locations: collapsible and rotary central lifting point for most of the transport devices commonly used on job sites.

Extremely durable, even under extreme conditions: base plate manufactured out of GJS-700 (spherulitic graphite iron). The best combination for a high resistance to breaking and low wear.

Fatigue-proof and precise workmanship thanks to the control handle damping and the integrated lateral control.

Integrated wheel set, extremely robust, even hot asphalt and sharp/curbstone drops will not damage the wheels.

Engine protection by way of an extra long fuel filler neck: reduces the risk of dirt particle infiltration during the refueling process.

Protection against transport damages by way of the automatic self-latching, zero backlash guide pole.

Easy changing of working locations: collapsible and rotary central lifting point for most of the transport devices commonly used on job sites.

Extremely durable, even under extreme conditions: base plate manufactured out of GJS-700 (spherulitic graphite iron). The best combination for a high resistance to breaking and low wear.

Fatigue-proof and precise workmanship thanks to the control handle damping and the integrated lateral control.
