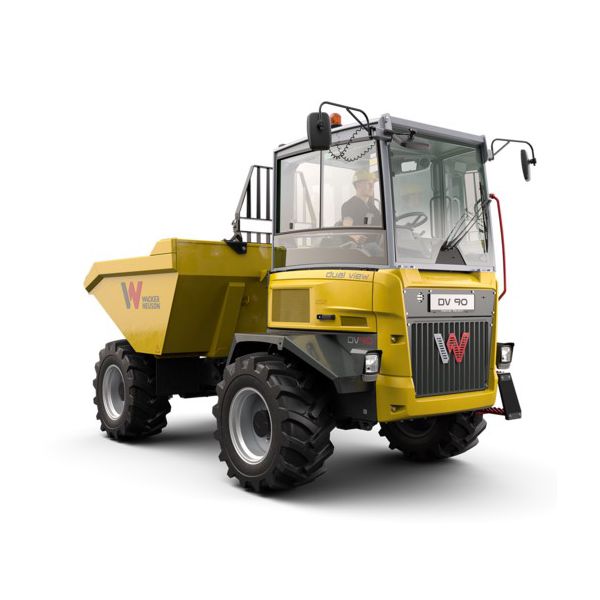

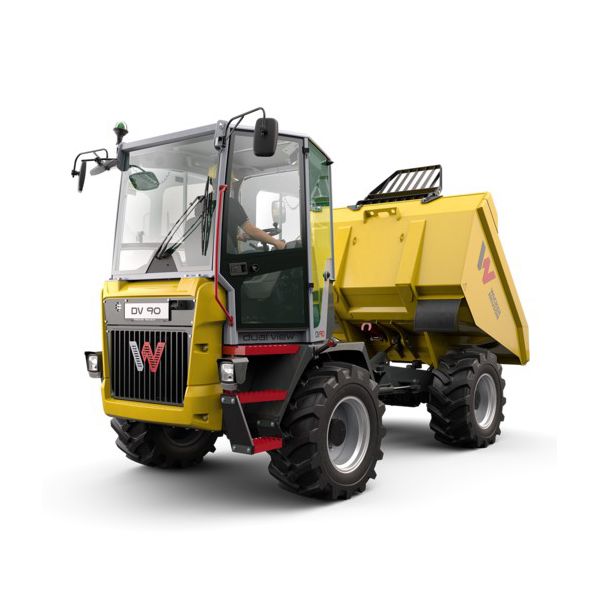

Wacker Neuson DV90 9t Diesel Dual View Straight Tip Dumper Stage V
The Wacker Neuson DV90 Stage V is a robust and efficient dumper, designed for construction sites requiring superior performance and reliability. With its compact design and advanced engine technology, it ensures optimal manoeuvrability and compliance with environmental standards. Ideal for any construction project.
Item ID: 50002859
Reference: 015196
Basic Dimensions
Length (mm)4920
Height (mm)3620
Width (mm)2520
Weight (kg)4733
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)25.9
Average Consumption Per Operating Hour (ERA)8.2
Average Engine Operating Hours Over A Rental Day (ERA)3.2
Convenience Features
Load SensingYes
TelematicsYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)12V / 100Ah
Voltage - System (V)12
Output - Alternator (Ah)120
Engine MakeDeutz
Engine ModelTD29L4
Engine Stage/TierStageV
Power - Engine (max) (kW)55.4
Power - I.C. Engine Rating (hp)75.3
Power - Starter (V/kW)12 V/3.2 kW
Safety Information
Service BrakeYes
Parking BrakeYes
Vibration - Whole Body (m/s2)0.5
Vibration - Hand-Arm (m/s2)2.5
Noise Level (dB)101
Sound Pressure (dB)100
SeatbeltYes
RollbarYes
Folding ROPS FrameYes
Standard Steps & HandlesYes
Technical Dimensions
Ground Clearance (mm)360
Bore & Stroke (mm)92 x 110
Size - Tyres500/60-22.5 (Alliance, Flotation 332) flotation tires with outstanding traction
Radius - Turning (Range) (m)6.6
Technical Specifications
Speed (max) (rpm)2300
Loads - Axle (kg)3000 (Front), 5050 (Rear)
Capacity - Fuel Tank (L)83
Capacity - Hydraulic Tank (L)60
Torque (Nm @ rpm)260 @ 1800
No. of Cylinders4
Displacement (L)2.925
Fuel Injection PumpDirect injection
Gradeability (%)50
Cooling SystemWater
Brakes TypeMechanically actuated brake, no hydraulic support / Hydro-mechanically actuated brake
Speed - Travel (Range) (mph)15.5
Pressure - Working (bar)235
Drive Control TypeHydrostatic 4-wheel drive with automatic ECO mode - Permanent all-wheel drive
Flow Rate - Pump (l/min)60.6 - 70
Payload (t)9
Inclination - Safe Authorized (%)55
Tipping TypeHydraulic front tip skip
Angle - Pendulum (°)11
Angle - Steering (°)29
Articulation (°)28
Capacity - Skip (Struck) (L)3750
Capacity - Skip (Heaped) (L)4600
Capacity - Skip (Liquid) (L)2350
AspirationTurbo
Speed - Idling (rpm)1200
Flow Rate - Chassis (l/min)123
