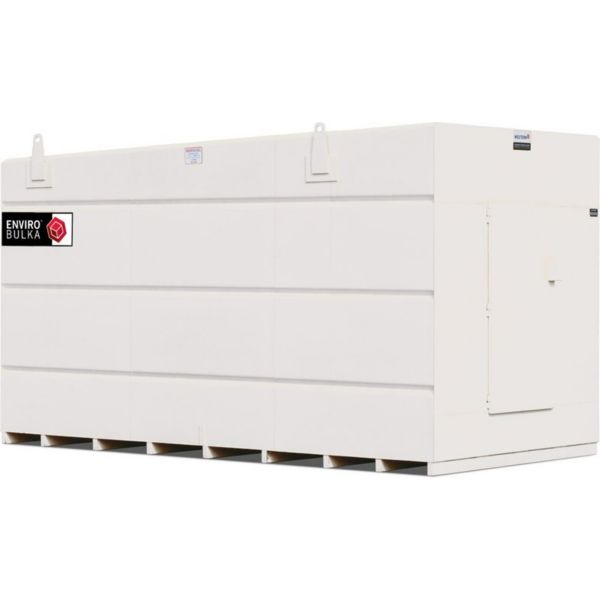

Western Global EBD4000 (2283) 18175L ENVIROBULKA DELUXE Fuel Storage Tank
Introducing the Western EBD4000, a robust and efficient piece of equipment perfect for your construction needs. Designed for reliability and performance, it boasts impressive dimensions to tackle various tasks with ease. Trust the EBD4000 to deliver results on site.
Item ID: 50002815
Reference: 003217
Basic Dimensions
Length (mm)4560
Height (mm)2560
Width (mm)2300
Weight (kg)3398
Convenience Features
Highway TowNo
Site TowNo
MudguardsNo
Fits Through DoorwaysNo
WeatherproofYes
Pressure Vacuum VentYes
Inspection ManholeYes
Pump BracketYes
Rear DroplegNo
Feed & Return - Up to 3 GeneratorsYes
Safety Information
Internal BafflesYes
Design Approvalsmanufactured to BS799 Part 5 with a tank and bund wall thickness of 3-5mm steel for strength and durability. In compliance with Pollution Prevention Guidelines (PPG2/PPG26)the EnviroBulka range features a bund of 110%
Design Standardsfitted with a galvanised mesh floor above a spill sump to comply with Drum storage regulations. Pollution Prevention Guidelines (PPG2 / PPG26) the EnviroBulka range features a bund of 110%.
Lockable CabinetYes
Removable TankNo
WheelsNo
GaugeYes
ADR Driver Training RequiredNo
BearersYes
Technical Dimensions
Thickness - Bund Material (mm)5
Thickness - Inner Tank Material (mm)3
Size - Coupling (mm)50
Size - Generator Feed & Return (in)3/4 (BSP Cap Return), ½ (BSP Cap Feed)
Size - Fill Points (in)2
Size - Pump Feed (in)1
Size - Pressure Release Valve (in)2
Dimensions - Cabinet (mm)2282 x 680 x 2135
Technical Specifications
ColourWhite
Material
- Mild steel bund (5 mm)
- Fully welded construction
- Galvanised mesh floor over spill sump
Purpose/Made forBulk Fuel Storage / Fuel Management Station / Standby Power Application - Featuring a full height lockable cabinet with full height doors, this tank is your solution for transport depots, plant yard and farms.
ChassisHeavy‑duty integrated steel base with forklift pockets & lifting eyes
Weight - Full (kg)21573
Capacity - Fuel Storage Tank (L)18175 (Nominal) / 17266 (Safe Fill @ 95%)
Ports
2" fill point
2" spare port
1" pump feed
3/4" return
1/2" generator feed
2" vent / PRV
½" BSP sockets (front, back, bund)
Bunded (%)110
Generator & Auxiliary EquipmentFeed and return (1/2 inch) fitted for the connection of auxiliary equipment i.e. generators, burners etc.
No. of Sockets3
Socket Type½” Socket BSP Plug (Spare / Back - Tank / Front – Bund)
