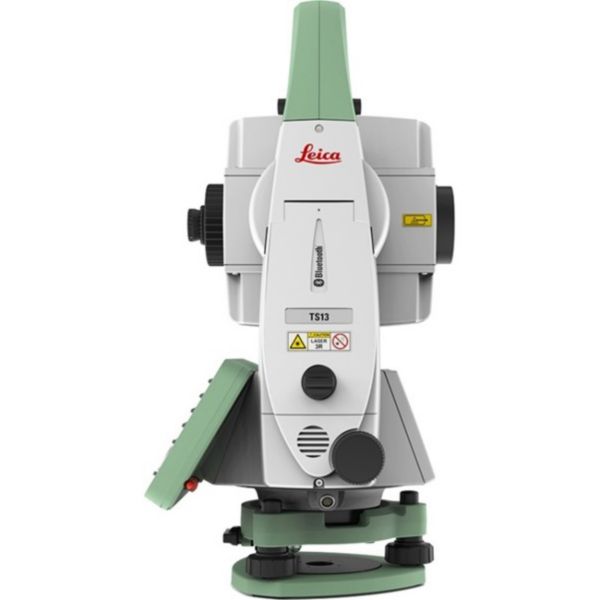

Leica TS13 5" Total Station

Name: Leica TS13 5" Total Station Hire | Sunbelt Rentals
SKU: 50001069

Product Code: 50001069


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The Leica TS13 5" is a precision total station designed for accurate surveying and construction applications. Its robust build and advanced features ensure reliable performance, making it an ideal choice for professionals seeking efficiency and precision on-site.

Item ID: 50001069

Reference: 164004

Weight (kg)

Height (mm)

336

Length (mm)

226

Width (mm)

164

Accuracy - Auto-Pointing (mm @ m)

1’ inch (0.3 mgon), 2’ inch (0.6 mgon), 3’ inch (1 mgon),

5’ inch (1.5 mgon) / Typically 3-4 s

Accuracy - Distance

Single (prism): 1 mm + 1.5 ppm / Typically 2.4 s
Single (any surface): 2 mm + 2 ppm / Typically 3 s

Range - Auto-Pointing (m)

Circular prism (GPR1, GPH1P): 1000 m
360° prism (GRZ4, GRZ122): 800 m

Range - Distance (m)

Prism (GPR1, GPH1P): 1.5 m to 3500 m
Non-Prism / Any surface: R500: 1.5 m to 500 m, R1000: 1.5 m to 1000 m

Size - Laser Dot (mm @ m)

7 mm x 10 mm @ 30m // 8 mm x 20 mm @ 50m // 16 mm x 25 mm @ 100m

Antenna

Integrated Bluetooth and WLAN (Gain [dBi] 2)

Frequency

2402 – 2480MHz (Bluetooth) / 2400 – 2473MHz (WLAN), channel 1-11

Humidity

95% non-condensing

Interfaces

RS232, USB, Bluetooth®, WLAN

Operating System / Processor

TI OMAP4430 1GHz Dual-core ARM®

Cortex™ A9 MPCore™

Ports

5 pin LEMO-0 for power, communication, data transfer.
This port is located at the base of the instrument.
Hotshoe connection for RadioHandle
This port is located on top of Communication side cover..
Bluetooth module for communication.
This port is housed within Communication side cover.
USB memory stick port for data transfer.
Cable connections from USB devices for communication and data transfer.
WLAN module for Internet access and communication.
This port is housed within the Communication side cover.

Purpose/Made for

Measuring horizontal and vertical angles.
Measuring distances.
Recording measurements.
Automatic target search, recognition and tracking.
Visualising the aiming direction and vertical axis.
Remote control of product.
Data communication with external appliances.
Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
Recording GNSS and point related data.
Computing with software.

Technology

System analyser (Coaxial, visible red laser) // Windows® EC7

Level

Circular level sensitivity 6ft/2mm

Electronic level resolution 2 inch

Maintenance / Calibration

An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months.

Telescope

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

Recording

TS13 with the four button keyboard and without display

Uses the memories only for firmware/license key upload. Data are recorded on the field controller.

TS13 with the full keyboard and with display

Data can be recorded onto a TS card or into the internal memory.

Storage

Internal memory 2 GB

SD card 1 GB or 8 GB

Controls

4 button keyboard with status LEDs

Display & Keyboard

4 button keyboard with status LEDs

Data Transfer / Communications

Cable and USB transfers

Laser Class

Class 1 (with Reflectors) // Class 3R (without Reflerctors) // visible red laser

Accuracy - Angular

1’ inch (0.3 mgon), 2’ inch (0.6 mgon)

3’ inch (1 mgon), 5’ inch (1.5 mgon)

Automatic Corrections

Line of sight error
Tilting axis error
Earth curvature
Circle eccentricity
Compensator index error
Vertical index error
Standing axis tilt
Refraction
ATR zero point error

Characteristics

Absolute, continuous, diametrical

Electronic Guide Light (EGL)

5 - 150 m / Typically 5 cm @ 100 m

Laser Plummet

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height

LOC8

Optional
