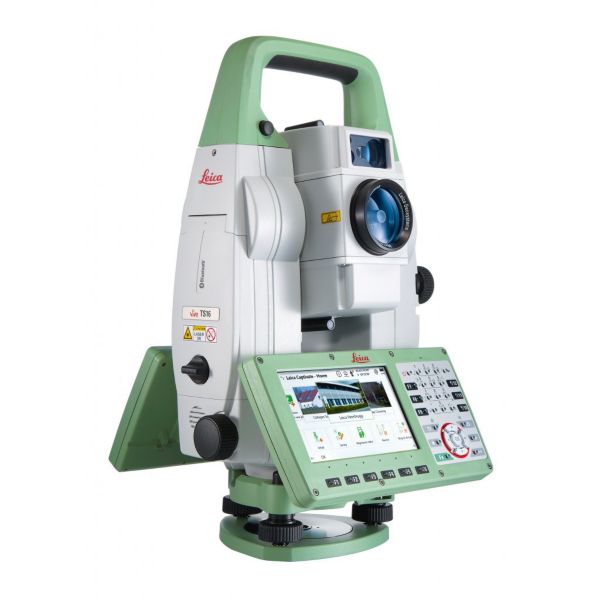

Leica Viva TS16 3" Total Station

• Efficiency and productivity for stakeout and construction measurements
• Site preparation and machine guidance in heavy construction projects
• Quick and reliable monitoring of locations, buildings, and objects in real-time in any environment
• AutoHeight
• Camera
• LOC8 & DynamicLock compatible (options)

• Single (prism): 1 mm + 1 ppm / Typically 2.4 s
• Single (prism): 2 mm + 1 ppm / Typically 1.5 s
• Single (any surface): 2 mm + 2 ppm / Typically 2 s

• Circular prism (GPR1, GPH1P): 1500m / 1000 m
• 360° prism (GRZ4, GRZ122): 1000m / 1000 m

• Prism (GPR1, GPH1P): 0.9 m to 3500 m
• Non-Prism / Any surface: R500: 0.9 m to 500 m, R1000: 0.9 m to 1000 m

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

• Circular level sensitivity: 6ft/2mm
• Electronic level resolution: 2 inch
• Compensation: Centralised quadruple axis compensation

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
• An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months.

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

• Sensor: 5 megapixel CMOS sensor
• Field of view: 19.4°
• Frame rate: Up to 20 frames per second

Internal memory 2 GB

SD card 1 GB or 8 GB

• 1 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 2 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 3 inch (Angular) // 1 inch 0.3mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 5 inch (Angular) // 1.5 inch 0.5mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)

• Distance accuracy: 1.0 mm (1 Sigma)
• Distance range: 0.7 m to 2.7 m

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer

B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer

C: Overcast, no haze, visibility about 40 km; no heat shimmer

D: Object in strong sunlight, severe heat shimmer

E: Object in shade, or overcast

F: Underground, night and twilight

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height

1’ inch (0.3 mgon), 2’ inch (0.6 mgon), 3’ inch (1 mgon),

5’ inch (1.5 mgon) / Typically 3-4 s

• Single (prism): 1 mm + 1.5 ppm / Typically 2.4 s
• Single (any surface): 2 mm + 2 ppm / Typically 3 s

• Circular prism (GPR1, GPH1P): 1000 m
• 360° prism (GRZ4, GRZ122): 800 m

• Prism (GPR1, GPH1P): 1.5 m to 3500 m
• Non-Prism / Any surface: R500: 1.5 m to 500 m, R1000: 1.5 m to 1000 m

TI OMAP4430 1GHz Dual-core ARM®

Cortex™ A9 MPCore™

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

Circular level sensitivity 6ft/2mm

Electronic level resolution 2 inch

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

TS13 with the four button keyboard and without display

Uses the memories only for firmware/license key upload. Data are recorded on the field controller.

TS13 with the full keyboard and with display

Data can be recorded onto a TS card or into the internal memory.

Internal memory 2 GB

SD card 1 GB or 8 GB

1’ inch (0.3 mgon), 2’ inch (0.6 mgon)

3’ inch (1 mgon), 5’ inch (1.5 mgon)

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height
