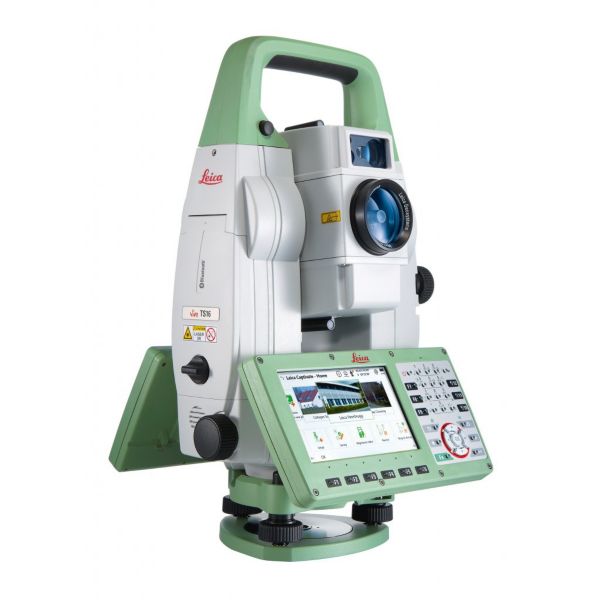

Leica Viva TS16 1" Total Station

• Efficiency and productivity for stakeout and construction measurements
• Site preparation and machine guidance in heavy construction projects
• Quick and reliable monitoring of locations, buildings, and objects in real-time in any environment
• AutoHeight
• Camera
• LOC8 & DynamicLock compatible (options)

• Single (prism): 1 mm + 1 ppm / Typically 2.4 s
• Single (prism): 2 mm + 1 ppm / Typically 1.5 s
• Single (any surface): 2 mm + 2 ppm / Typically 2 s

• Circular prism (GPR1, GPH1P): 1500m / 1000 m
• 360° prism (GRZ4, GRZ122): 1000m / 1000 m

• Prism (GPR1, GPH1P): 0.9 m to 3500 m
• Non-Prism / Any surface: R500: 0.9 m to 500 m, R1000: 0.9 m to 1000 m

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

• Circular level sensitivity: 6ft/2mm
• Electronic level resolution: 2 inch
• Compensation: Centralised quadruple axis compensation

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
• An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months.

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

• Sensor: 5 megapixel CMOS sensor
• Field of view: 19.4°
• Frame rate: Up to 20 frames per second

Internal memory 2 GB

SD card 1 GB or 8 GB

• 1 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 2 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 3 inch (Angular) // 1 inch 0.3mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 5 inch (Angular) // 1.5 inch 0.5mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)

• Distance accuracy: 1.0 mm (1 Sigma)
• Distance range: 0.7 m to 2.7 m

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer

B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer

C: Overcast, no haze, visibility about 40 km; no heat shimmer

D: Object in strong sunlight, severe heat shimmer

E: Object in shade, or overcast

F: Underground, night and twilight

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height

1’ inch (0.3 mgon), 2’ inch (0.6 mgon), 3’ inch (1 mgon),

5’ inch (1.5 mgon) / Typically 3-4 s

• Single (prism): 1 mm + 1.5 ppm / Typically 2.4 s
• Single (any surface): 2 mm + 2 ppm / Typically 3 s

• Circular prism (GPR1, GPH1P): 1000 m
• 360° prism (GRZ4, GRZ122): 800 m

• Prism (GPR1, GPH1P): 1.5 m to 3500 m
• Non-Prism / Any surface: R500: 1.5 m to 500 m, R1000: 1.5 m to 1000 m

TI OMAP4430 1GHz Dual-core ARM®

Cortex™ A9 MPCore™

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

Circular level sensitivity 6ft/2mm

Electronic level resolution 2 inch

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

TS13 with the four button keyboard and without display

Uses the memories only for firmware/license key upload. Data are recorded on the field controller.

TS13 with the full keyboard and with display

Data can be recorded onto a TS card or into the internal memory.

Internal memory 2 GB

SD card 1 GB or 8 GB

1’ inch (0.3 mgon), 2’ inch (0.6 mgon)

3’ inch (1 mgon), 5’ inch (1.5 mgon)

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height

• Efficiency and productivity for stakeout and construction measurements
• Site preparation and machine guidance in heavy construction projects
• Quick and reliable monitoring of locations, buildings, and objects in real-time in any environment
• AutoHeight
• Camera
• LOC8 & DynamicLock compatible (options)

• Single (prism): 1 mm + 1 ppm / Typically 2.4 s
• Single (prism): 2 mm + 1 ppm / Typically 1.5 s
• Single (any surface): 2 mm + 2 ppm / Typically 2 s

• Circular prism (GPR1, GPH1P): 1500m / 1000 m
• 360° prism (GRZ4, GRZ122): 1000m / 1000 m

• Prism (GPR1, GPH1P): 0.9 m to 3500 m
• Non-Prism / Any surface: R500: 0.9 m to 500 m, R1000: 0.9 m to 1000 m

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

• Circular level sensitivity: 6ft/2mm
• Electronic level resolution: 2 inch
• Compensation: Centralised quadruple axis compensation

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
• An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months.

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

• Sensor: 5 megapixel CMOS sensor
• Field of view: 19.4°
• Frame rate: Up to 20 frames per second

Internal memory 2 GB

SD card 1 GB or 8 GB

• 1 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 2 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 3 inch (Angular) // 1 inch 0.3mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 5 inch (Angular) // 1.5 inch 0.5mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)

• Distance accuracy: 1.0 mm (1 Sigma)
• Distance range: 0.7 m to 2.7 m

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer

B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer

C: Overcast, no haze, visibility about 40 km; no heat shimmer

D: Object in strong sunlight, severe heat shimmer

E: Object in shade, or overcast

F: Underground, night and twilight

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma) at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height

• Efficiency and productivity for stakeout and construction measurements
• Site preparation and machine guidance in heavy construction projects
• Quick and reliable monitoring of locations, buildings, and objects in real-time in any environment
• AutoHeight
• Camera
• LOC8 & DynamicLock compatible (options)

• Single (prism): 1 mm + 1 ppm / Typically 2.4 s
• Single (prism): 2 mm + 1 ppm / Typically 1.5 s
• Single (any surface): 2 mm + 2 ppm / Typically 2 s

• Circular prism (GPR1, GPH1P): 1500m / 1000 m
• 360° prism (GRZ4, GRZ122): 1000m / 1000 m

• Prism (GPR1, GPH1P): 0.9 m to 3500 m
• Non-Prism / Any surface: R500: 0.9 m to 500 m, R1000: 0.9 m to 1000 m

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

• Circular level sensitivity: 6ft/2mm
• Electronic level resolution: 2 inch
• Compensation: Centralised quadruple axis compensation

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
• An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months.

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

• Sensor: 5 megapixel CMOS sensor
• Field of view: 19.4°
• Frame rate: Up to 20 frames per second

Internal memory 2 GB

SD card 1 GB or 8 GB

• 1 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 2 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 3 inch (Angular) // 1 inch 0.3mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 5 inch (Angular) // 1.5 inch 0.5mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)

• Distance accuracy: 1.0 mm (1 Sigma)
• Distance range: 0.7 m to 2.7 m

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer

B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer

C: Overcast, no haze, visibility about 40 km; no heat shimmer

D: Object in strong sunlight, severe heat shimmer

E: Object in shade, or overcast

F: Underground, night and twilight

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height

• Angle measurement
• Distance measurement to prism
• Distance measurement to any surface (reflectorless)
• Motorised
• Automatic Target Aiming
• SpeedSearch
• RS232, USB and SD card interface
• Bluetooth
• Internal Flash Memory (2 GB)
• Hotshoe interface for CommunicationHandle
• Guide Light (EGL)
• WLAN

• Single Auto: 1 mm + 1.5 ppm / 2.4 sec
• Continuous with lock: 3 mm + 1.5 ppm / less than 0.15 sec

• Standard prism (GRP1): 3.500 m
• Three standard prisms (GPR1): 5,400 m
• 360° prism (GRZ4, GRZ122): 2.000 m
• 360° mini prism (GRZ101): 1.000 m
• Mini prism (GMP101): 2.000 m
• Reflective tape (GZM31 - 60 mm x 60 mm): 250 m

• Port 1: 5 pin LEMO-0 for power, communication, data transfer.
• Port 2: Hotshoe connection for Communication Handle with RCS.
• Port 3: Bluetooth module for communication.
• USB Host Port: USB memory stick port for data transfer.
• USB Device Port: Cable connections from USB devices for communication and data transfer.
• WLAN: WLAN module for communication.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and -tracking.
• Visualizing the aiming direction and vertical axis.
• Remote control of product.
• Computing with software.

• Circular level sensitivity: 6ft/2mm
• Electronic level resolution: 2 inch

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
• An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months. For instruments which are in intensive or permanent use, for example tunnelling or monitoring, the recommended inspection cycle may be reduced.

• Magnification: 30 x
• Clear objective diameter: 40 mm
• Focusing: 1.7 m/5.6 ft to infinity
• Field of view: 1°30’/1.66 gon, 2.7 m at 100 m

• Internal memory: 2 GB
• USB memory stick
• SD card: 1 - 8 GB

• Keyboard: 4 keys, 4 LEDs
• Position: Face I only

• Keyboard: 4 keys, 4 LEDs
• Position: Face I only

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer

B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer

C: Overcast, no haze, visibility about 40 km; no heat shimmer

D: Object in strong sunlight, severe heat shimmer

E: Object in shade, or overcast

F: Underground, night and twilight

• Type: Visible red laser class 2
• Location: In standing axis of instrument
• Accuracy: Deviation from plumb line:1.5mm (2 sigma) at 1.5m instrument height
• Diameter of laser point: 2.5mm at 1.5m instrument height

• Real-time video imaging with 5 megapixel camera
• Auto-tracking technology
• Hybrid Positioning ready
• Exclusive LongLink communications
• RC-5 quick lock
• Rugged, waterproof design

• Prism: Fine measurement (1.5mm + 2ppm) // Rapid measurement (5mm + 2ppm)
• Reflective Sheet: Fine measurement (2mm + 2ppm) // Rapid measurement (5mm + 2ppm)
• Reflectorless: Fine measurement (2mm + 2ppm – 0.3-200m), (5mm + 10ppm – 200-350m), (10mm + 10ppm – 350-1,000m) // Rapid measurement (6mm + 2ppm – 0.3-200m), (8mm + 10ppm – 200-350m), (15mm + 10ppm – 350-1,000m)

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10ft/2mm
• Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6ft 30 inch

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 168mm
• Aperture: 45mm (1.8 inch) (EDM: 50mm (2.0 inch))
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5 inch
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 500MB
• External Memory: up to 8GB USB Flash

LongLink™ rover communications Bluetooth Class 1

USB 2.0 Slot (Host + Slave)

RS-232C Serial

• Display: Colour Touch TFT 240 x 320 display
• Keyboard: 25 keys with illuminator (single keyboard)

LongLink™ rover communications Bluetooth Class 1

USB 2.0 Slot (Host + Slave)

RS-232C Serial

• Compensation: Liquid 2-axis tilt sensor
• Range of Compensation: ±6 (±0.0019gon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Magnification: 3X
• Image: Erect
• Minimum Focus: 0.3m

• UltraSonic Direct Drive motors
• 30% smaller and lighter than any Topcon robotic instrument with more functionality
• Tsshield global service
• Advanced UltraTrac technology

• Prism: Fine measurement (1.5mm + 2ppm) // Rapid measurement (5mm + 2ppm)
• Reflective Sheet: Fine measurement (2mm + 2ppm) // Rapid measurement (5mm + 2ppm)
• Reflectorless: Fine measurement (2mm + 2ppm – 0.3-200m), (5mm + 10ppm – 200-350m), (10mm + 10ppm – 350-1,000m) // Rapid measurement (6mm + 2ppm – 0.3-200m), (8mm + 10ppm – 200-350m), (15mm + 10ppm – 350-1,000m)

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10ft/2mm on tribrach // 8ft/2mm on main unit (optional)
• Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6ft 30 inch

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Internal Memory: 1GB
• External Memory: up to 32GB USB Flash

• Display: Colour touchscreen 4.3 inch TFT 800 x 480 WVGA display (Backlight LED 9 brightness levels). Touch panel resistance sensitive analogue type.
• Keypad: 24 keys (soft function, operations, power on, light) with illuminator and trigger key

• Display: Colour touchscreen 4.3 inch TFT 800 x 480 WVGA display (Backlight LED 9 brightness levels). Touch panel resistance sensitive analogue type.
• Keypad: 24 keys (soft function, operations, power on, light) with illuminator and trigger key

• Data input/output asynchronous serial RS232C compatible
• USB Revision 2.0 (FS)
• Host (Type A)
• Client (Type miniB)

• Compensation: Liquid 2-axis tilt sensor
• Range of Compensation: ±6 (±0.0019gon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Light source: LED Red 626nm
• Distance: 1.3 to 150m
• Visible Range: Right & Left / Upward & Downward - ±4ft (7m/100m)
• Width: 4ft (about 0.12m/100m)
• Brightness: 3 Levels (bright / normal / dim)

• Magnification: 3X
• Image: Erect
• Minimum Focus: 0.5m

• UltraSonic Direct Drive motors
• 30% smaller and lighter than any Topcon robotic instrument with more functionality
• Tsshield global service
• Advanced UltraTrac technology

• Prism: Fine measurement (1.5mm + 2ppm) // Rapid measurement (5mm + 2ppm)
• Reflective Sheet: Fine measurement (2mm + 2ppm) // Rapid measurement (5mm + 2ppm)
• Reflectorless: Fine measurement (2mm + 2ppm – 0.3-200m), (5mm + 10ppm – 200-350m), (10mm + 10ppm – 350-1,000m) // Rapid measurement (6mm + 2ppm – 0.3-200m), (8mm + 10ppm – 200-350m), (15mm + 10ppm – 350-1,000m)

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10ft/2mm on tribrach // 8ft/2mm on main unit (optional)
• Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6ft 30 inch

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 142mm
• Aperture: EDM: 38mm
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5 inch
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 1GB
• External Memory: up to 32GB USB Flash

• Display: Colour touchscreen 4.3 inch TFT 800 x 480 WVGA display (Backlight LED 9 brightness levels). Touch panel resistance sensitive analogue type.
• Keypad: 24 keys (soft function, operations, power on, light) with illuminator and trigger key

• Display: Colour touchscreen 4.3 inch TFT 800 x 480 WVGA display (Backlight LED 9 brightness levels). Touch panel resistance sensitive analogue type.
• Keypad: 24 keys (soft function, operations, power on, light) with illuminator and trigger key

• Data input/output asynchronous serial RS232C compatible
• USB Revision 2.0 (FS)
• Host (Type A)
• Client (Type miniB)

• Compensation: Liquid 2-axis tilt sensor
• Range of Compensation: ±6 (±0.0019gon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Light source: LED Red 626nm
• Distance: 1.3 to 150m
• Visible Range: Right & Left / Upward & Downward - ±4ft (7m/100m)
• Width: 4ft (about 0.12m/100m)
• Brightness: 3 Levels (bright / normal / dim)

• Magnification: 3X
• Image: Erect
• Minimum Focus: 0.5m

• Everything you need to perform survey campaigns
• Measure further and faster with the Trimble DR Plus EDM
• Trimble L2P real-time location information
• Seamless integration with Imagine Rover and GNSS receivers
• Intuitive Trimble Access Field Software
• Trimble Business Centre Office Software for quick data processing

• ISO – Pris9m Mode (Standard): 1mm + 2ppm
• RMSE – Prism Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm
• DR Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm // (Extended Range): 10mm + 2ppm

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) - infinity
• Illuminated crosshair: Variable (10 steps)

• Type: Centred dual-axis
• Accuracy: 0.5 inch (0.15 mgon)
• Range: ±5.4ft (±100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Everything you need to perform survey campaigns
• Measure further and faster with the Trimble DR Plus EDM
• Trimble L2P real-time location information
• Seamless integration with Imagine Rover and GNSS receivers
• Intuitive Trimble Access Field Software
• Trimble Business Centre Office Software for quick data processing

• ISO – Prism Mode (Standard): 1mm + 2ppm
• RMSE – Prism Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm
• DR Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm // (Extended Range): 10mm + 2ppm

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) - infinity
• Illuminated crosshair: Variable (10 steps)

• Type: Centred dual-axis
• Accuracy: 0.5 inch (0.15 mgon)
• Range: ±5.4ft (±100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Surveying, imaging and scanning in one powerful solution
• Trimble VISION technology for video robotic control, scene documentation and photogrammetric measurements
• Trimble L2P real-time location information
• Trimble DR Plus for long range and accuracy
• Intuitive Trimble Access Field Software
• Trimble Business Centre Office Software for quick data processing

• ISO – Prism Mode (Standard): 1mm + 2ppm
• RMSE – Prism Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm
• DR Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm // (Extended Range): 10mm + 2ppm

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) – infinity
• Illuminated crosshair: Variable (10 steps)
• Autofocus: Standard

• Chip: Colour digital image sensor
• Resolution: 2048 x 1536 pixels
• Focus Length: 23mm
• Depth of Field: 3m to infinity
• Digital Zoom: 4-step (1x, 2x, 4x, 8x)
• Exposure: Spot, HDR, Automatic
• File Format: JPEG
• Video Streaming: 5 frames/second

• Type: Centred dual-axis
• Accuracy: 0.5 inch (0.15 mgon)
• Range: ±5.4ft (±100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Surveying, imaging and scanning in one powerful solution
• Trimble VISION technology for video robotic control, scene documentation and photogrammetric measurements
• Trimble L2P real-time location information
• Trimble DR Plus for long range and accuracy
• Intuitive Trimble Access Field Software
• Trimble Business Centre Office Software for quick data processing

• ISO – Prism Mode (Standard): 1mm + 2ppm
• RMSE – Prism Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm
• DR Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm // (Extended Range): 10mm + 2ppm

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) – infinity
• Illuminated crosshair: Variable (10 steps)
• Autofocus: Standard

• Chip: Colour digital image sensor
• Resolution: 2048 x 1536 pixels
• Focus Length: 23mm
• Depth of Field: 3m to infinity
• Digital Zoom: 4-step (1x, 2x, 4x, 8x)
• Exposure: Spot, HDR, Automatic
• File Format: JPEG
• Video Streaming: 5 frames/second

• Type: Centred dual-axis
• Accuracy: 0.5 inch (0.15 mgon)
• Range: ±5.4ft (±100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Surveying, imaging and scanning in one powerful solution
• Trimble VISION technology for video robotic control, scene documentation and photogrammetric measurements
• Trimble L2P real-time location information
• Trimble DR Plus for long range and accuracy
• Intuitive Trimble Access Field Software
• Trimble Business Centre Office Software for quick data processing

• ISO – Prism Mode (Standard): 1mm + 2ppm
• RMSE – Prism Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm
• DR Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm // (Extended Range): 10mm + 2ppm

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) – infinity
• Illuminated crosshair: Variable (10 steps)
• Autofocus: Standard

• Chip: Colour digital image sensor
• Resolution: 2048 x 1536 pixels
• Focus Length: 23mm
• Depth of Field: 3m to infinity
• Digital Zoom: 4-step (1x, 2x, 4x, 8x)
• Exposure: Spot, HDR, Automatic
• File Format: JPEG
• Video Streaming: 5 frames/second

• Type: Centred dual-axis
• Accuracy: 0.5 inch (0.15 mgon)
• Range: ±5.4ft (±100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• Trimble DR Plus or HP EDM for optimal speed, accuracy and reliability
• Optional Trimble VISION and SureScan technology
• Trimble L2P real-time equipment management
• Intuitive Trimble Access Field Software
• Trimble Business Centre Office Software for quick data processing
• Trimble 4D Control for monitoring management

• 1x Internal Battery: approx.. 6.5 hours (or 5.5 hours for Video Robotic)
• 3x Internal Batteries in adapter: approx.. 18 hours (or 17 hours for Video Robotic)
• 1x Internal Battery in Robotic Holder: 13.5 hours

• ISO – Prism Mode (Standard): 1mm + 2ppm
• RMSE – Prism Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm
• DR Mode (Standard): 2mm + 2ppm // (Tracking): 4mm + 2ppm // (Extended Range): 10mm + 2ppm

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) – infinity
• Illuminated crosshair: Variable (10 steps)
• Autofocus: Standard

• Chip: Colour digital image sensor
• Resolution: 2048 x 1536 pixels
• Focus Length: 23mm
• Depth of Field: 3m to infinity
• Digital Zoom: 4-step (1x, 2x, 4x, 8x)
• Exposure: Spot, HDR, Automatic
• File Format: JPEG
• Video Streaming: 5 frames/second

• Type: Centred dual-axis
• Accuracy: 0.5 inch (0.15 mgon)
• Range: ±5.4ft (±100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

• One universal total station satisfies all site positioning and grade control needs
• Servo, Autolock, Robotic, Reflectorless and ATS Grade Control modes of operation all in a single instrument
• Industry-leading, incredibly fast 20 Hz dynamic positioning update rate
• DR300+ long-range reflectorless measurement allows high accuracy measurement without the risk and delay of walking the surface with a target
• Trimble MagDrive™ servos provide unmatched instrument turning and tracking speeds and silent precise operation
• Trimble SurePoint™ technology autocorrects instrument pointing for mis level so you’ll always capture accurate 3D information
• Unique Trimble MultiTrack™ technology allows operation with conventional prisms or active targets

• 1x Internal Battery: approx.. 6 hours
• 3x Internal Batteries in adapter: approx.. 18 hours
• 1x Internal Battery in Robotic Holder: 12 hours

• Prism Mode (Standard): ± (3 mm + 2 ppm) ± (0 .01 ft + 2 ppm)
• Prism Mode (Tracking): ± (10 mm + 2 ppm) ± (0 .032 ft + 2 ppm)

• Circular Level in tribrach: 8ft/2mm on tribrach
• Electronic 2-axis level resolution: 0.3 inch (0.1mgon)

• Cleaning: Use anti-static lens paper, a cotton wad, or a lens brush
• Getting rid of Moisture: Leave the instrument to dry naturally outside its instrument case.
• Storage: Remove battery from instrument and store in a dry environment, in a temperature of between -40 to +70 degrees Celsius
• Servicing: Service and Calibration to be performed by an authorized Trimble service workshop. There are no serviceable parts for the user. The instrument will advise when the next 'Service' is due.

• Magnification: 30X
• Aperture: 40 mm (1.57 in)
• Field of View @ 100m: 2.6m
• Minimum Focus: 1.5m (4.92ft) – infinity
• Illuminated crosshair: Variable (10 steps)
• Track Light: Built In

• Type: Centred dual-axis
• Accuracy: ±6ft (± 100mgon)

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions
