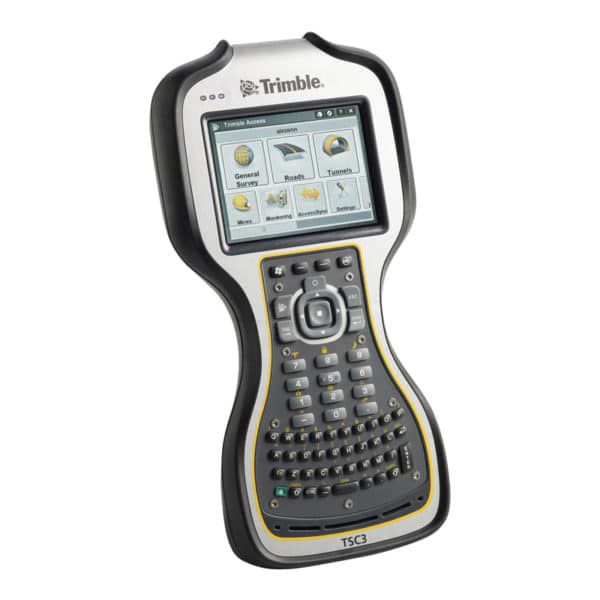

Trimble TSC3 Controller

• Rugged Design
• Office Processing Power on the Move
• Removable Battery Packs
• Wireless Connectivity
• Built-in SD Card slot
• Display & Touch Screen

• Approx. 10 hours (normal use)
• Approx. 8 hours (When using Bluetooth)
• Approx. 6 hours (When using Wireless LAN)

• WEEE Directive
• EU Battery Directive
• R&TTE-Class 2
• EMC-Class B
• R&TTE: 1995/5/EC

• Conforming to RS232C (D-sub 9)
• USB (rev 1.1) (Type Mini-B)
• USB (rev 1.1) (Type A) *1
• Compact Flash (conforming to Type I/II)
• SDIO/SD/SDHC/MMC card slot *2
• Bluetooth Class 1 radio modem (RS-1B) (Optional wireless system) connection port (special 30 pins

• Always clean the instrument after use.
• If the instrument becomes wet from rain, dry moisture before storing.
• To clean the instrument, dust off well and then wipe clean with a soft cloth.

• Display resolution 480×640 VGA
• Type 3.7 inch TFT Colour LCD
• Number of colours displayed 262,144 colours
• Light LED back light

• Stylus
• Screen protector
• USB cable
• Rechargeable battery
• Charger
• AC plug
• Quick start guide
• User manual (CD‑ROM)

• Bluetooth (up to 10m)
• WLAN (up to 10m)

Touch panel : Analog resistive film

Keyboard : 7 keys (Power key included)

Nominal 12 V DC

Range 10.5 – 28 V DC

• Bluetooth: 2402 – 2480MHz
• RCS: 2402 – 2452MHz
• 3.5G GSM/UMTS: UMTS/HSDPA (WCDMA/FDD) 850 / 1900 / 2100 Quad-Band EGSM 850 / 900 / 1800 / 1900 GPRS multi-slot class 12 EDGE multi-slot class 12
• WLAN: 2400 – 2484MHz

• Remote control of product.
• Data communication with external appliances.
• Recording measurements.
• Computing with software.
• Carrying out measurement tasks using various GNSS measuring techniques.
• Recording GNSS and point related data.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites

Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C/104°F and clean them. Remove the battery cover

and dry the battery compartment. Do not repack until everything is dry. Always close the transport container when using in the field.

• 100 – 240 V AC power supply for all regions
• Stylus
• 2 x anti-glare display foils
• Documentation USB card

Integrated sealed speaker and microphone

Bluetooth® audio headset support

Bluetooth® 2.0 Class 2

Integrated GSM/UMTS 3.5G module with fully integrated internal antenna

Nominal 12 V DC

Range 10.5 – 28 V DC

• Bluetooth: 2402 – 2480MHz
• RCS: 2402 – 2452MHz
• 3.5G GSM/UMTS: UMTS/HSDPA (WCDMA/FDD) 850 / 1900 / 2100 Quad-Band EGSM 850 / 900 / 1800 / 1900 GPRS multi-slot class 12 EDGE multi-slot class 12
• WLAN: 2400 – 2484MHz

• Remote control of product.
• Data communication with external appliances.
• Recording measurements.
• Computing with software.
• Carrying out measurement tasks using various GNSS measuring techniques.
• Recording GNSS and point related data.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites

Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C/104°F and clean them. Remove the battery cover

and dry the battery compartment. Do not repack until everything is dry. Always close the transport container when using in the field.

• 100 – 240 V AC power supply for all regions
• Stylus
• 2 x anti-glare display foils
• Documentation USB card

Integrated sealed speaker and microphone

Bluetooth® audio headset support

Bluetooth® 2.0 Class 2

Integrated GSM/UMTS 3.5G module with fully integrated internal antenna

Nominal voltage: 15 V DC ( )

Voltage range: 10.5 V DC to 18.0 V DC

Minimum voltage for charging: 14 V DC ( )

• Bluetooth: 2402 – 2480MHz
• RCS: 2402 – 2480MHz
• GSM (2G)/UMTS (3G): UMTS 800 / 850 / 900 / 1900 / 2100 GSM 850 / 900 / 1800 / 1900 HSPA Download: 7.2 Mbit/s HSPA Upload: 5.76 Mbit/s
• WLAN: 2400 – 2484MHz
• 3.75G GSM/UMTS/ CDMA: Quad-Band GSM & Penta-Band UMTS & Tri Band CDMA 800 / 1900
• CTR20: 2402 - 2480MHz

• Remote control of product.
• Data communication with external appliances.
• Recording measurements.
• Computing with software.
• Carrying out measurement tasks using various GNSS measuring techniques.
• Recording GNSS and point related data.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites

Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C/104°F and clean them. Remove the battery cover

and dry the battery compartment. Do not repack until everything is dry. Always close the transport container when using in the field.

• GPS: L1, L2, L2C, L5
• GLONASS: L1, L2, L3*
• Galileo: E1, E5a, E5b, AltBOC, E6*
• BeiDou: B1, B2, B3*
• QZSS: L1 C/A, L2C, L5
• SBAS (WAAS, EGNOS, MSAS, GAGAN): L-band

- World’s thinnest and lightest fully-rugged 7” Windows® tablets

- Large 7” sunlight readable touchscreen display for convenient operation

- Microsoft Windows 10 Enterprise LTSC operation system, multi-lingual, multi-touch operating system

- Various wireless communication possibilities (Bluetooth®, Wi-Fi and

integrated 4G/LTS1 multi-carrier mobile broadband) for use with different

sensors and internet access

- Fully rugged design for use in toughest conditions

- Operation time up to 16 hours

180 cm. Vibration: General minimum integrity and helicopter minimum integrity test,

MIL-STD-810G, Method 514.6, Procedure I, II

The powerful, rugged and lightweight devices are designed to enable easy, mobile work on-site and increase productivity. Combined with the

construction-tailored field software Leica iCON site and Leica iCON build, Leica Geosystems delivers the optimal solution for building and heavy construction applications. The flexible communication makes

real-time data transfer with the central office easy

Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C/104°F and clean them. Remove the battery cover

and dry the battery compartment. Do not repack until everything is dry. Always close the transport container when using in the field.

• Wide temperature range and well protected against water, dust, and impacts. You work in all conditions, so does the tablet.
• Hot-swappable batteries. Communication stays open, there is no need to close programs or to stop and save data to change batteries.
• Things happen on site but it continues to work. Drop-proof, dust-proof, weather-proof, water-proof, jobsite-proof, car-proof, backpack-proof = Survey-proof.
• 7-inch sunlight-readable screen. Convenient size to use graphics and imaging sensors and lightweight enough to use all day.
• Full-LTE support and one modem for all regions.
• Efficient companion for Leica Captivate. Everything from connecting to sensors and survey tasks to data sharing in one field software.
• Stable Windows® operating system is a flexible solution for all kinds of on-site needs.
• Long-range Bluetooth® option. When your operations require connectivity over longer distances.

• USB Host: USB Type A (v.2.0), USB Type C (v.3.0)
• Bluetooth: Class 1 BTV4.2
• RF antenna pass through: WWAN GNSS, WLAN
• W-Fi: 802.11 a/b/g/n/ac (2.4 & 5 GHz)

• USB: v2.0 Type-A, v3.0 Type-C
• MicroSD: up to 256 GB
• Power Supply: DC jack
• RF Antenna Pass-through: WWAN, GNSS, WLAN
• Docking Connector: 35 pin

Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C/104°F and clean them. Remove the battery cover

and dry the battery compartment. Do not repack until everything is dry. Always close the transport container when using in the field.

7.0 inch

Resolution 1280x800

LCD type IPS

10 points capacitive multi-touch

Corning® Gorilla® Glass 3

Sunlight-readable

• WLAN: 802.11 a/b/g/n/ac (2.4 & 5GHz)
• Bluetooth®: v4.2
• Cellular Modem: Worldwide 3G/4G LTE

Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C/104°F and clean them. Remove the battery cover

and dry the battery compartment. Do not repack until everything is dry. Always close the transport container when using in the field.

Rear: 8 megapixel with auto focus

Front: HD Video with 720 pixel (Images 1.3 megapixel)

FCC Class B

CE Marking (applicable EMC, RandTTE, and LVD directives)

Industry Canada

EN60950 Safety

Bluetooth SIG qualification

USB client

IP68 waterproof and dustproof

Designed to MIL-STD 810G

Integrated Cinterion PH8P module (Pentaband Worldwide), 800/850/

900/1800/1900/2100 MHz data speeds, UMTS/HSPA+3GPP

Durable hardened plastic in a shear proof, shock resistant design

Shock resistant bumpers

Strong chemical resistance

Easy to grip ergonomic form factor

Comfortable, wide hand strap

RS-232C 9-pin D-sub connector, +5V @ 500 mA available on ring in pin

9 via software configuration

USB Host (Full A)

USB Client (Micro B)

12-24 VDC jack for power input and battery charging, +12V DC 1.67A

3.5mm audio jack, supports speaker/microphone or stereo output (pin

detect).

Active viewing area: 4.3 inch (109 mm) colour WVGA LCD TFT - Touchscreen

800 x 480 pixel resolution

LCD backlight

Outdoor viewable

Portrait (default) or landscape orientation

Li-Ion battery

Hand strap (pre-installed)

USB micro client sync cable

AC wall charger with international plug kit

Input: 100-240VAC, 50/60Hz, 0.5A

Output: 12VDC, 1.67A

Capacitive stylus and tether

Screwdriver

Quick Start Guide

Owner’s Manual available at www.TopconTotalCare.com

2-year warranty

Speaker, loud and clear

Microphone, low noise

3.5mm audio jack, supports stereo

headset and microphone at the

same time (speaker disable)

5MP resolution

Autofocus

LED illuminator

Video capture

JPEG image format

Geotagging; embed and/or emboss photo with date, time and GPS/GNSS position

Flash and flashlight

Bluetooth® wireless technology 2.1

+EDR Class 1, range 200 feet (30 m)

Wi-Fi 802.11b/g/n with extended

range. U.S. and international

Numeric keypad

Shift functions

Programmable key and LEDs

Backlight

On-screen keyboard

High-sensitivity GPS/GLONASS/SBAS receiver

2 to 5 meter typical accuracy

Post processing capability for enhanced accuracy beyond 2 to 5 meters, BINR protocol

Enhanced performance under heavy canopy

Integrated real-time SBAS capability, support for WAAS, MSAS, EGNOS

File format NMEA-0183 v2.3, default strings: GGA, GSA, GLL, GSV, RMC, VTG, ZDA, GPS

32 GNSS tracking channels

GPS/GNSS signal quality indicator on Home screen

JSNav application

• Large, bright, high-resolution screen makes instrument control easy
• Optimized for Trimble Access field software
• Fully-integrated camera, GPS navigation, and communications
• Improved collaboration and control through constant connectivity

– Integrated Bluetooth 2.0+EDR, integrated Wi-Fi 802.11 b/g

– Integrated quad-band GSM/GPRS/EDGE: 850/900/1800/1900 MHz

– 2/6 Mbit/s 3G HSDPA GSM WWAN

– Integrated 2.4 GHz frequency-hopping spread-spectrum radio modem (optional)

– Dual band CDMA2000 in Bands BC0 and BC1 (800/900MHz)2

The Trimble® TSC3 controller with Trimble Access™ software is a groundbreaking handheld field computing solution that streamlines

the flow of everyday surveying work and the number of devices you need in the field

• 28.9 Wh Li-Ion battery
• International AC power supply
• Hand strap
• USB cable (mini)
• Stylus tether
• Stylus with spring tip (pkg of 2)
• Screen protectors
• Audio port dust cover
• I/O port dust covers
• Standard soft case
• Quick start guide sheet

Integrated GPS, Wi-Fi 802.11B/G, and Bluetooth 2.0+EDR;

Optional 3G GSM (pentaband HSDPA)

• Back-lit international alphanumeric keypad with directional keys
• 12 programmable function keys
• Function, Shift and AGr key combinations
• Ergonomic design, easy to grip and carry, less handling fatigue
• All day battery, with user-replaceable battery option
• 5-inch multi-touch screen—with finger, stylus and glove modes
• Bright, anti-glare display, readable in sunlight and lowlight conditions
• Military-spec rugged design, IP65 rated
• Android™ 10 operating system
• Google Mobile Services certified with access to Google Play™ store apps
• Optimised for Trimble® Access™ field software
• EMPOWER module compatible

MIL-STD-810H, Method 516.8, Procedure IV

26 drops (each face, edge and corner) at room

temperature from 1.22 m (4 ft) onto concrete

6 faces at low and high temps (-30 °C and +60 °C

(-22 °F and +140 °F)

Ball drop similar to IEC 60950-1, 50 mm steel ball

dropped 0.5 m on touch panel only. Vibration: MIL-STD-810H, Method 514.8 Procedures I and II

General minimum integrity and loose cargo test

• ETSI EN 300 328
• ETSI EN 300 328 V1.8.1 (2012-06)
• ETSI EN 300 893
• ETSI EN 301 489-1 V1.9.2 (20011-09)
• ETSI EN 301 489-3
• ETSI EN 301 489-17 V2.2.1 (2012-09)
• ETSI EN 303 413
• EN 55022: 2010+AC: 2011
• EN 55024: 2010+A1:2015
• EN 55032: 2012+AC: 2013
• EN 60950-1 (2001)
• EN 60950-1:2006/A11:2009/A1:2010/
• EN 61000-3-2: 2006+A2: 2009
• EN 61000-3-3: 2013
• EN 62368-1:2014

USB-C for charging and USB 2.0 data transfer

USB-PD 2.0 supports charger inputs up to 9 V/3 A

• 70% Isopropyl Alcohol prep pad
• grey lint-free cleaning cloth
• blue lint/dust removal sticker
• Input: 100-240VAC ~ 50/60Hz 1.3A
• Output: 45W: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• The TSC5 controller uses 5/9V, 3A charging l Size: 58 X 46 X 28 mm

• Optimized for Trimble Access field software
• Large 7-inch multi-touch screen for finger or stylus
• Sunlight readable display
• Secure Windows 10 operating system
• Compatible with Microsoft Office, web browsers, and other third-party apps
• Manages large project files, complex imagery, point clouds, and other 3D data
• Intel Pentium processor with 8GB RAM and 128GB internal memory
• Comprehensive connectivity options
• Front- and rear-facing cameras
• Backlit keypad with customizable button commands
• User-interchangeable Empower modules, including a long-range radio
• Military-spec rugged design, engineering, and performance
• Ergonomic form factor
• Hot-swappable batteries with LED indicators

• Drop: 26 drops at room temperature from 1.22m (4ft) onto plywood over concrete MIL-STD-810G, Method 516.6, Procedure IV
• Temperature Shock: Survives cycles between -30 °C to +60 °C, MIL-STD-810G, 503.5, I
• Solar Exposure: Survives prolonged solar exposure, MIL-STD810G, Method 505.5, II. Vibration: Operating MIL-STD 810G 514.6 I and II, non-operating I, cat 24

• RandTTE Directive 1999/5/EC ETSI EN 300 328 v1.8.1 (2012-06) ETSI EN 301 489-1 V1.9.2 (20011-09)
• ETSI EN 301 489-17V2.2.1 (2012-09)
• EN 55022: 2010+AC:2011
• EN 55024: 2010
• EN 60950-1 (2001)
• EN 61000-3-2: 2006+A2: 2009
• EN 61000-3-3: 2013

User replaceable module

Standard: Charger/DC power-in, USB 3.1 Gen 1 type

A host, serial RS232 DB-9

• Rear camera 8MP autofocus with flash
• Front camera 2MP fixed-focus

• High capacity hot swappable batteries
• Energy efficient Intel i7 processor
• 1 TB storage
• 32 GB Ram

USB-C (Power Input), 3.5mm Audio Jack, USB 3.0 x1, LAN Port RJ45

x1, Smart Card Reader

• Trimble T10x tablet with hot swappable battery
• AC-DC USB-C power adapter and cord kit
• Digital Pen with tether and battery
• Handstrap
• Screen protector
• Quick Start Guide

• Bluetooth® v5.1
• Wi-Fi 802.11ax
• USB 3.0 x1
• LAN Port RJ45 x1
• Smart Card reader
• 3.5mm Headset jack, combined with microphone

• Rugged Design
• Office Processing Power on the Move
• Removable Battery Packs
• Wireless Connectivity Standard
• Built-in Digital Cameras (Front and Back)
• 7-inch display designed for working in direct sunlight

• FCC Class B
• CE Marking
• Industry Canada
• IEC/EN 60950 safety
• Bluetooth SIG qualification
• IP68 waterproof and dustproof
• Designed to MIL-STD 810G
• RoHS 2 compliant

• LTE: B1, B3, B7, B8, B20
• UMTS/HSPA+: B1, B2, B5, B8
• GSM/GPRS/EDGE: GSM 850, EGSM 900, DCS 1800, PCS 1900

USB 3.0 Host (full size A connector)

Power input is 10 V. - 17 V., nominal 12 VDC

3.5 mm audio jack, supports stereo headset/microphone

Ready to run even the most demanding field data collection application, and its rugged ergonomic design is ready to handle a long day on the

job in some of the harshest environments out there.

• Protect the touchscreen from impact, pressure, or abrasive
• Make sure the battery door is securely installed. Remove the screen protector if you want to clean underneath it. Use warm water, a mild cleaning solution, and a soft bristle brush to gently clean the SHC5000..

• Battery Charger
• Removable Li-ion 43 Wh Battery
• Hand Strap
• Quick Start Guide
• Capacitive Small Tip Stylus
• International Plug Kit
• Internal 21 Wh Battery
• Connector Port Dust Cover

• 3.5 mm audio jack
• Mono speaker, loud an clear
• Microphone, low noise

• Rear: 8 MP with LED illumination
• Front: 2 MP

• Long-range Bluetooth® Smart Ready wireless technology, v4.0 + EDR, Class 1.5, BLE support
• Wi-Fi 802.11 a/b/g/n, 2.4 GHz and 5 GHz
• Internal GSM 4G LTE modem (optional)

• Programmable keys
• Backlit keys

• Type: uBlox NEO MBM
• Accuracy: 2-5m
• Channels: 72
• Update Rate: 5 Hz
