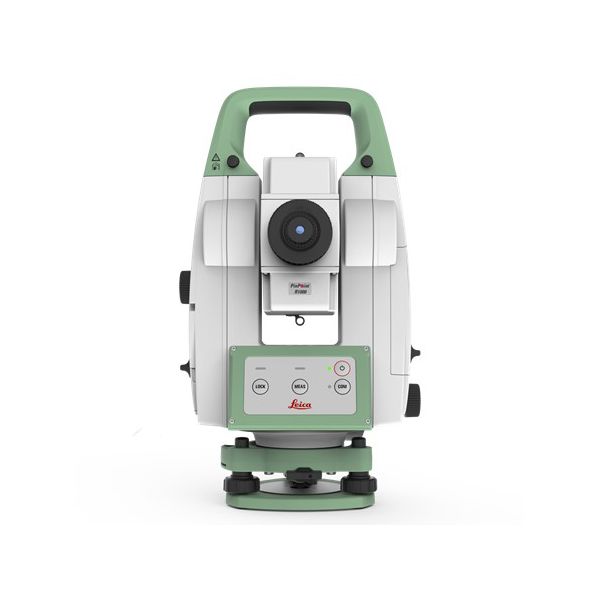

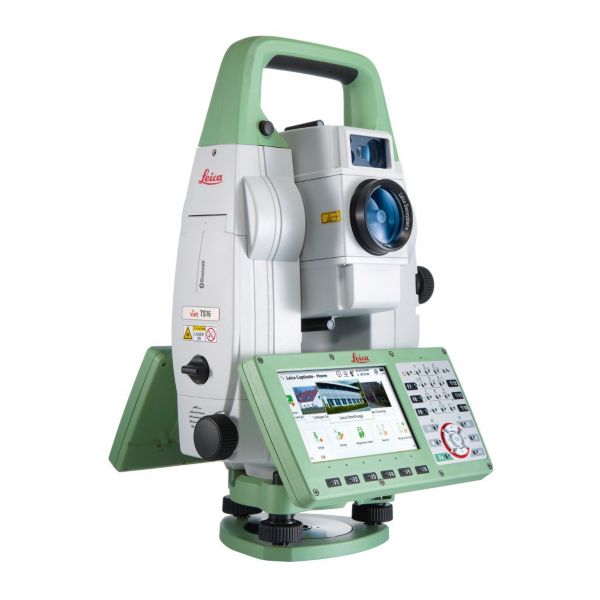

Robotic Total Stations

• Efficiency and productivity for stakeout and construction measurements
• Site preparation and machine guidance in heavy construction projects
• Quick and reliable monitoring of locations, buildings, and objects in real-time in any environment
• AutoHeight
• Camera
• LOC8 & DynamicLock compatible (options)

• Single (prism): 1 mm + 1 ppm / Typically 2.4 s
• Single (prism): 2 mm + 1 ppm / Typically 1.5 s
• Single (any surface): 2 mm + 2 ppm / Typically 2 s

• Circular prism (GPR1, GPH1P): 1500m / 1000 m
• 360° prism (GRZ4, GRZ122): 1000m / 1000 m

• Prism (GPR1, GPH1P): 0.9 m to 3500 m
• Non-Prism / Any surface: R500: 0.9 m to 500 m, R1000: 0.9 m to 1000 m

• 5 pin LEMO-0 for power, communication, data transfer.
• This port is located at the base of the instrument.
• Hotshoe connection for RadioHandle
• This port is located on top of Communication side cover..
• Bluetooth module for communication.
• This port is housed within Communication side cover.
• USB memory stick port for data transfer.
• Cable connections from USB devices for communication and data transfer.
• WLAN module for Internet access and communication.
• This port is housed within the Communication side cover.

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Automatic target search, recognition and tracking.
• Visualising the aiming direction and vertical axis.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.
• Recording GNSS and point related data.
• Computing with software.

• Circular level sensitivity: 6ft/2mm
• Electronic level resolution: 2 inch
• Compensation: Centralised quadruple axis compensation

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
• An inspection of the motorisation in motorised instruments must be done in a Leica Geosystems authorised service centre. Leica Geosystems recommends an inspection of the product every 12 months.

Magnification 30x

Free Objective aperture 40mm

Focusing 1.7m/5.6ft to infinity

Field of view 1°30’/1.66gon

2.7m at 100m

• Sensor: 5 megapixel CMOS sensor
• Field of view: 19.4°
• Frame rate: Up to 20 frames per second

Internal memory 2 GB

SD card 1 GB or 8 GB

• 1 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 2 inch (Angular) // 0.5 inch 0.2mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 3 inch (Angular) // 1 inch 0.3mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)
• 5 inch (Angular) // 1.5 inch 0.5mgon (Setting Accuracy) // 4ft 0.07gon (Setting Range)

• Distance accuracy: 1.0 mm (1 Sigma)
• Distance range: 0.7 m to 2.7 m

• Line of sight error
• Tilting axis error
• Earth curvature
• Circle eccentricity
• Compensator index error
• Vertical index error
• Standing axis tilt
• Refraction
• ATR zero point error

A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer

B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer

C: Overcast, no haze, visibility about 40 km; no heat shimmer

D: Object in strong sunlight, severe heat shimmer

E: Object in shade, or overcast

F: Underground, night and twilight

Type Visible red laser class 2

Location In standing axis of instrument

Accuracy Deviation from plumb line:1.5mm (2 sigma)

at 1.5m instrument height

Diameter of laser point 2.5mm at 1.5m instrument height
