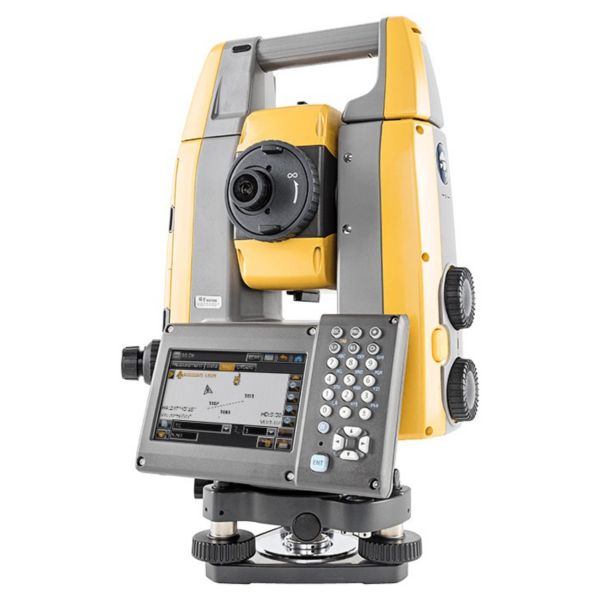

Topcon GT-1003 3" Robotic Total Station

Name: Topcon GT-1003 3" Robotic Total Station Hire | Sunbelt
SKU: 50001080

Product Code: 50001080


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The Topcon GT-1003 3" is a precision surveying instrument, ideal for construction projects requiring accuracy and reliability. Its robust design ensures durability on-site, while advanced technology enhances measurement efficiency.

Item ID: 50001080

Reference: 167075

Weight (kg)

5.8

Height (mm)

355

Length (mm)

212

Width (mm)

172

Accuracy - Auto-Pointing (mm @ m)

Collimating: 1.2mm or better (up to 100m) // 0.3mm + 9ppm (over 100m)

Accuracy - Distance

Prism: Fine measurement (1.5mm + 2ppm) // Rapid measurement (5mm + 2ppm)
Reflective Sheet: Fine measurement (2mm + 2ppm) // Rapid measurement (5mm + 2ppm)
Reflectorless: Fine measurement (2mm + 2ppm – 0.3-200m), (5mm + 10ppm – 200-350m), (10mm + 10ppm – 350-1,000m) // Rapid measurement (6mm + 2ppm – 0.3-200m), (8mm + 10ppm – 200-350m), (15mm + 10ppm – 350-1,000m)

Height - Tilting Axis (mm)

236 mm from tribrach base

Range - Auto-Pointing (m)

Collimating: up to / or over 100m

Range - Distance (m)

up to 5,000m (Prism EDM) // up to 1,000m (Non-Prism)

Size - Laser Dot (mm @ m)

3mm or less

Antenna

Bluetooth Antenna

Frequency

2,402 to 2.48 GHz (Bluetooth) / 2,412 to 2,472 (WLAN) (1 to 11ch)

Humidity

No condensing

Interfaces

Serial RS-232C, USB 2.0 (Host: Type A / Client: Type mini B), WLAN

Ports

USB Port 1: USB memory device
USB Port 2 (mini-B): Computers etc.

Purpose/Made for

One person surveying (construction)

Technology

Windows® Compact 7

Level

Circular Level: 10ft/2mm on tribrach // 8ft/2mm on main unit (optional)
Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6ft 30 inch

Maintenance / Calibration

Wipe off moisture if instrument gets wet
Always clean instrument before returning to case (special care is needed for lens)
Clean display with soft, dry cloth
Store in dry room with consistent temperature
Check Tripod for loose fir or screws
Change grease every 4,000-5,000 hours of operation
Never pull instrument from case
Periodically adjust the instrument to maintain accuracy

Telescope

192.5 mm from tribrach mounting plate

Rating - Inverter

CDC68A; input 110-240V 0.23A

Time - Charging (hrs)

5.5

Storage

Internal Memory: 1GB
External Memory: up to 32GB USB Flash

Controls

Display: Colour touchscreen 4.3 inch TFT 800 x 480 WVGA display (Backlight LED 9 brightness levels). Touch panel resistance sensitive analogue type.
Keypad: 24 keys (soft function, operations, power on, light) with illuminator and trigger key

Display & Keyboard

Display: Colour touchscreen 4.3 inch TFT 800 x 480 WVGA display (Backlight LED 9 brightness levels). Touch panel resistance sensitive analogue type.
Keypad: 24 keys (soft function, operations, power on, light) with illuminator and trigger key

Data Transfer / Communications

Data input/output asynchronous serial RS232C compatible
USB Revision 2.0 (FS)
Host (Type A)
Client (Type miniB)

Laser Class

Coaxial phase shift measuring system, Red laser diode 690nm, Class 3R

Compensation

Compensation: Liquid 2-axis tilt sensor
Range of Compensation: ±6 (±0.0019gon)

Accuracy - Angular

3 inch (0.0010gon/0.0015mil)

Conditions - Atmospheric

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx

6. Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m

9. Figures will change depending on the target reflection factor, weather conditions and location conditions

Electronic Guide Light (EGL)

Light source: LED Red 626nm
Distance: 1.3 to 150m
Visible Range: Right & Left / Upward & Downward - ±4ft (7m/100m)
Width: 4ft (about 0.12m/100m)
Brightness: 3 Levels (bright / normal / dim)

Laser Plummet

Magnification: 3X
Image: Erect
Minimum Focus: 0.5m
